TP-5801 58mm Thermal Printer
Category: Thermal Printer/POS Printer Series  Publish Time: 2016-02-24 14:17

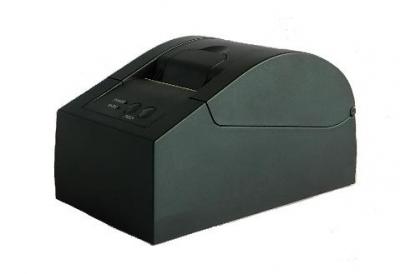

TP-5801 58mm Thermal Printer

Model TP-5801 Thermal Printer


The TP-5801 is the thermal receipt printer for point of sale system and other ticketing system, it has a streamline and compact appearance and can hold the bigger paper roller, its diameter is up to 80 mm. And this printer also provides both control interface and instructions for electrically driving the control unit of cash drawer.



This product complies with CE, FCC & RoHS



Descriptions of TP-5801 Thermal Printer:


The TP-5801 is the thermal receipt printer, features the high quality print output, low noise printing. And this thermal printer has a streamlined compact appearance and high reliability; it is easy to use, especially suitable for point of sale (POS) system and other ticketing system. And also, the TP-5801 provides both control interface RJ11 and instructions to electrically drive the control unit of cash drawer. Here are specifications for this model as below:




Basic Specifications:


•  Print method

Thermal line printing

•  Print font

-  ANK

   character set


12x24 dots/1.5 (w) x 3.0 (h) mm

24x24 dots/3.0 (w) x 3.0 (h) mm


•  Command set

Compatible with ESC/POS Printer command set

•  Print resolution

8 dots/mm, 384 dots/line

•  Print speed

Max. 70mm/s or 23 lines/s

•  Paper roll width

57.5±0.5 mm

•  Paper roll diameter

Max. 80 mm

•  Paper thickness

53～60 g/square meter

•  Paper type

Thermal paper

•  Reliability

-  Printer head lifespan

-  MCBF


14 million lines

5 million lines

•  Interface

LPT/RS232/Cash drawer control



Physical Characteristics:


•  Dimension (w x d x h)

116 ×204×137 mm or 4.57x8.03x5.39 in

•  Weight

1kg/2.21 lb (excluding paper roll)

•  Power supply

+12 VDC/2.0 A
