TP-5802 58mm Thermal Printer
Category: Thermal Printer/POS Printer Series  Publish Time: 2016-03-24 14:18

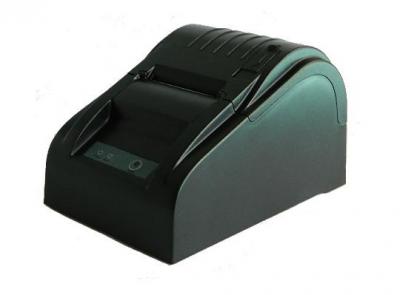

TP-5802 58mm Thermal Printer

Model TP-5802 Thermal Printer



The TP-5802 is the thermal printer for POS system and other ticketing system, it has a streamline and compact appearance and can hold the bigger paper roller, its diameter is up to 80 mm. And this thermal printer also provides both control interface and instructions for electrically driving the control unit of cash drawer.



This product complies with CE, FCC & RoHS



Descriptions of TP-5802 Thermal Printer:


The TP-5802 is the thermal receipt printer, features the high quality print output, fast and low noise printing. And this thermal printer has a streamlined compact appearance and high reliability; it is easy to use, especially suitable for point of sale (POS) system and other ticketing system. And also, the TP-5802 provides both control interface RJ11 and instructions to electrically drive the control unit of cash drawer. Here are specifications for this model as below:




Basic Specifications:


●  Print method

Thermal line printing

●  Print font

    -  ANK

       character set




12×24 dots/1.25(w)× 3.00(h)mm

9x17 dots/1.1(w) x 2.1(h) mm

12×24 dots, 24x24 dots/1.50(w) ×3.00(h) mm


    -  Extended

       character set

OEM437, Katakana, OEM850, OEM860, OEM863, OEM865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, OEM866, OEM852, OEM858, IranII, Latvian, Arabic, PT151,1251, OEM747, WPC1257, Vietnam, OEM864, Hebrew, WPC1255 and Thai.


●  Command set

Compatible with ESC/POS command

●  Print resolution

8 dots/mm, 384 dots/line

●  Print speed

Max. 90 mm/s

●  Paper roll width

57.5±0.5 mm

●  Paper roll diameter

Max. 50 mm

●  Paper thickness

53~60 g/square meter

●  Paper type

Thermal paper

●  Reliability

    -  Thermal Printer

       head lifespan

    -  MCBF


30 million lines


5 million lines

●  Interface

RS232/USB/Cash drawer control



Physical Characteristics:



●  Dimension (W x D x H)

5.11x6.89x4.33 in, or 130 ×175×110 mm

●  Weight

1.76 lb/0.8 kg (excluding paper roll)

●  Power supply

+12VDC/2.0 A
