HT-2103D PC POS System
Category: PC-based POS Machine  Publish Time: 2017-08-31 00:17

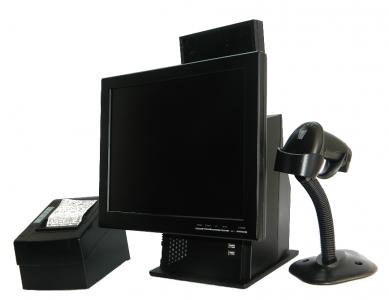

HT-2103D PC POS System

Model HT-2103D
PC POS System

This HT-2103D is a PC POS system that has compact structure and decent appearance, which is designed for the Retail, Food & Beverage industry, and very suitable for the grocery store, supermarket, convenience store and so on. And for PC POS system, Hintel is only available for POS hardware solutions, the customers are required to purchase the separate application management system softwares and OS from the third-party product and service providers.



Descriptions of HT-2103D POS System:


The HT-2103D is the PC POS system for the Retail, Food & Beverage industry, and it is compactly designed for the grocery store, convenience store , and supermarket and so on. This machine can be used as terminal station or back office system or both combinations together for different scale retail business. And it supports the operating systems including the Mac OS, MS Windows OS and Linux OS, and meets the requirements of all the specific retail business management. In addition, the system also includes the related peripheral devices such as thermal receipt printer, barcode scanner and cash drawer etc. Here are the system specifications for this model as follows:




System specifications:


•  POS Motherboard:

ATX SV-Atom103

•  CPU:

Intel Atom D525 1.86GHz

•  Chipset:

Intel NM10

•  Hard Disk:

500GB HDD

•  DIMM memory:

2GB



Front/rear panel port:


  • 1 x PS/2 Keyboard
  • 1 x PS/2 mouse
  • 1 x LAN (RJ45) port
  • 2 x USB on front panel
  • 4 x USB on the I/O back panel
  • 1 x COM on the I/O back panel
  • 3 x COM (built-in )
  • 1 x LPT port
  • 1 x Stereo audio line-in/line-out jack
  • 1 x VGA


OS support:


  • Mac OS, MS Windows 7/ Windows XP/ Windows 2000, and Linux


Peripheral devices:


  • 15” color monitor
  • Customer pole display
  • Optional 58mm/80mm thermal receipt printer
  • Barcode scanner
  • Cash drawer
  • Keyboard
  • Mouse


Physical characteristics of main POS machine:


•  Dimensions (w x d x h)

200x182x268 mm or 7.87x7.17x10.55 in

•  Weight

6.2 kg/13.67 lb




For PC POS system solutions, Hintel just provide POS hardware system only, the relevant terminal application software, back office management system, database management system and operating system (OS) are not available at Hintel, and the customers need to do the separate purchase from the third-party product and service providers.
