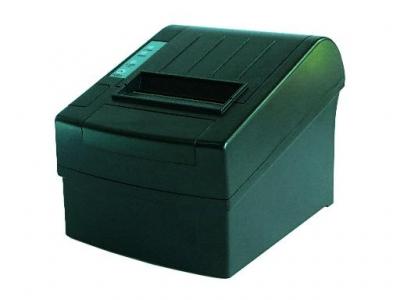

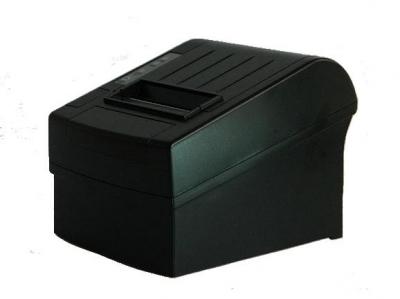

TP-8802 80mm Thermal Printer or POS Printer Series


The 80mm thermal printer/POS printer is used as the peripheral device for the POS system and other ticketing system. And the TP-8802 80mm thermal printer can support the compact font size output, and save over 30% of the thermal paper, and its printing speed is at 250 mm/s. TP-8802 has a streamline and compact appearance and can hold the bigger paper roller, its diameter is up to 80 mm. And at the same time, this thermal printer provides both control interface and instructions for electrically driving the control unit of cash drawer.

TP-8802 80mm Thermal Printer/POS Printer
Category: Thermal Printer/POS Printer Series  Publish Time: 2016-07-03 21:12

TP-8802 80mm Thermal Printer/POS Printer

Model TP-8802 80mm Thermal Printer

The TP-8802 is a 80mm thermal printer/POS printer with high speed printing at 250 mm/s for point of sale system and other ticketing system, it has a streamline and compact appearance and can hold the bigger paper roller, its diameter is up to 80 mm. And this thermal printer also provides both control interface and instructions for electrically driving the control unit of cash drawer.

This product complies with CE, FCC & RoHS



Descriptions of Thermal Printer/POS Printer:


The TP-8802 is the thermal printer with auto cutter, features the high quality print output at very fast and low-noise printing, and can save 30% of thermal paper with the compact fount output. And TP-8802 thermal receipt printer (POS printer) has a streamlined compact appearance and high reliability especially suitable for point of sale (POS) system and other ticketing system, and it is easy to use and maintain. And also, the TP-8802 provides both control interface RJ11 and instructions to electrically drive the control unit of cash drawer. Here are specifications for this model as below:




Basic Specifications:


•  Print method

Thermal line printing

•  Print font

    -  ANK

       character set





12x24 dots/1.5 (w) x 3.0 (h) mm

9x17 dots/1.1 (w) x 2.1 (h) mm

24x24 dots/3.0 (w) x 3.0 (h) mm


     -  Extended

        character set

OEM437, Katakana, OEM850, OEM860, OEM863, OEM865, West Europe, Greek, Hebrew, East Europe, Iran, WPC1252, OEM866, OEM852, OEM858, IranII, Latvian, Arabic, PT151,1251, OEM747, WPC1257, Vietnam, OEM864, Hebrew, WPC1255 and Thai.


•  Command set

Compatible with ESC/POS Printer command set

•  Print resolution

8 dots/mm, 576 dots/line

•  Print speed

Max. 300 mm/s

•  Paper roll width

79.5±0.5 mm

•  Paper roll diameter

Max. 80 mm

•  Paper thickness

53~60 g/square meter

•  Paper type

Thermal paper

•  Reliability

    -  Thermal Printer head

       lifespan

    -  MCBF



30 million lines


5 million lines

•  Interface

RS232/USB/LAN/Cash drawer control

•  Auto cutter

Yes



Physical Characteristics of TP-8802 Thermal Printer:


•  Dimension (w x d x h)

145×190×148 mm or 5.70x7.48x5.83 in

•  Weight

1.6 kg/3.53 lb (excluding paper roll)

•  Power supply

+24 VDC/2.0 A
