TP-8803 Thermal Printer
Category: Thermal Printer/POS Printer Series  Publish Time: 2017-08-01 16:58

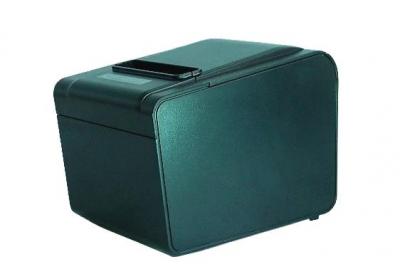

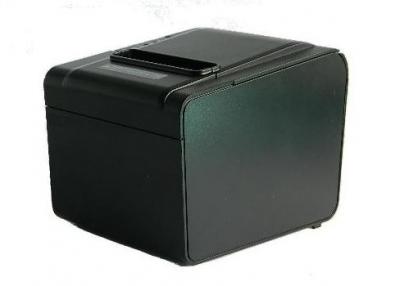

TP-8803 Thermal Printer

Model TP-8803 Thermal Printer


The TP-8803 is the thermal receipt printer for point of sale system and other ticketing system, it has a streamline and compact appearance and can hold the bigger paper roller, its diameter is up to 80 mm. And this printer also provides both control interface and instructions for electrically driving the control unit of cash drawer.


This product complies with CE, FCC & RoHS



Descriptions of product:


The TP-8803 is the thermal receipt printer, features the high quality print output, very fast and low noise printing. And this thermal printer has a streamlined compact appearance and high reliability; it is easy to use, especially suitable for point of sale (POS) system and other ticketing system. And also, the TP-8803 provides both control interface RJ11 and instructions to electrically drive the control unit of cash drawer. Here are specifications for this model as below:




Basic Specifications:


•  Print method

Thermal line printing

•  Print font

    -  ANK

       character set



12×24 dots/1.25 (w) x 3.00 (h) mm

24×24 dots/3.00 (w) x 3.00 (h) mm


     -  Extended

        character set


PC437, Katakana, PC850, PC860, PC863, PC865, WPC1252, PC866, PC852 and PC858.


•  Command set

Compatible with EPSON ESC/POS command set

•  Print resolution

8 dots/mm, 576 dots/line

•  Print speed

Max. 250 mm/s, or 83 lines/s

•  Paper roll width

79.5±0.5 mm

•  Paper roll diameter

Max. 90 mm

•  Paper thickness

53~60 g/square meter

•  Paper type

Thermal paper

•  Reliability

    -  Printer head lifespan

    -  MCBF


30 million lines

6 million lines

•  Interface

RS232/USB/LAN/Cash drawer control



Physical Characteristics:


•  Dimension (w x d x h)

145x195x148 mm or 5.70x7.68x5.83 in

•  Weight

1.5 kg/3.31 lb (excluding paper roll)

•  Power supply

+24 VDC/2.0 A
