BS-1880 Barcode Scanner
Category: Barcode Laser Scanner Series  Publish Time: 2016-06-03 00:18

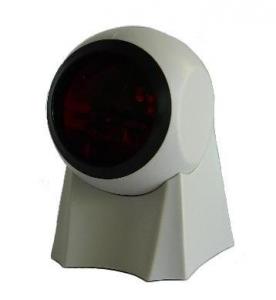

BS-1880 Barcode Scanner

Model BS-1880 Barcode Scanner



The BS-1880 is an omnidirectional and high performance barcode scanner with hand-free scanning, it can work under auto-trigger and stand detection, and use as a fixed presentation scanner, and its nominal working distance is 0 to 20cm, very suitable for point of sale system or other related industry data checkout such as ticketing system etc.


This product complies with CE, FCC & RoHS



Descriptions of BS-1880 Barcode Scanner:


The BS-1880 is the omnidirectional laser barcode scanner with streamline and compact appearance design for use as input device of POS system and other ticketing system. And this barcode scanner with hand-free scanning is a high performance input device, and workable under the auto-trigger and stand detection, it can deliver the fast and accurate scanning, and speed up the processing to reduce the waiting time at check counter. And this barcode scanner is very suitable as peripheral input device for use in the point of sale system. Here are specifications for this model as below:




Basic specifications:


●  Barcode scanner type

20-line omnidirectional scanning

●  Light source

650 nm visible laser diode

●  Scan rate

1500 scans per second

●  Reading distance

0 to 20 cm (depends on bar width of barcode)

●  Decode capability

EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93, Code 128, EAN128, Codabar, Industrial 2 of 5, MSI, Interleave 2 of 5, Matrix 2 of 5 etc.


●  Interface

PS/2 Keyboard wedge or USB

●  Trigger mode

Auto-trigger and stand detection

●  Min. resolution

0.1 mm/4 mil

●  Print contrast ratio

Min. 30%



Physical characteristics of barcode scanner:


●  Dimensions (W x D x H)

3.39 x 3.15 x 6.14 in, or 86 x 80 x 156 mm

●  Weight

0.66 lb/300 gm

●  Power supply

+5VDC/200mA (Max.)

●  Color

Cloud white/twilight Black
